Automobile Alnico horse shoe magnet Corrosion Resistant , small horseshoe magnets

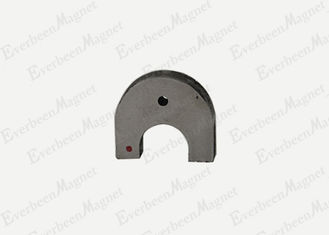

Large Image : Automobile Alnico horse shoe magnet Corrosion Resistant , small horseshoe magnets

Product Details:

Place of Origin:	CN
Certification:	ISO9001
Model Number:	YS-Alnico-19

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Negotiation
Packaging Details:	Export packing, cartons, pallets
Delivery Time:	25~30 days
Payment Terms:	T/T , Western Union
Supply Ability:	500Ton/year

Detailed Product Description

Shape:	Horseshoe	Coating:	None
Dimension:	As Drawing	Material:	Alinico
Working Temp.:	High Temp. Resistance	Export Port:	Xiamen, China

Horseshoe Alnico Permanent Magnet Corrosion Resistance For Automobile

Description :
Alnico magnets, composed of primarily aluminum, nickel, and cobalt, were developed in the 1940's. This class of magnet remains a preferred material because of it's excellent temperature stability, high magnetic flux density, and resistance to corrosion. Alnico magnets are manufactured through a casting or sintering process.

Attributes of Alnico
• Very temperature stable, great for high heat applications
• Working temperature can reach 550-600 °C
• Does not lend itself to conventional machining (hard and brittle)
• High residual induction and energy product compared to ceramic material
• Low coercive force compared to ceramic and rare earth materials (more subject to demagnetization)

Applications of Alnico Magnets

Automobile
Holding magnets
Sensors
Electron tubes
Traveling wave tubes
Radar
Clutches and bearings
Motors
Controls

Item name	YS-Alnico-19
Working temperature	550-600 °C
Shape	Horseshoe
Application	Automobile, Holding, Switch

Magnetic property

Grade	Br		HcJ		(BH)max		D	Equivalent< br> MMPA Class	% Change Per C		Tc< /div>	Tw
Grade	mT	Gs	KA/m	Oe	KJ/m³	MGOe	g/cm³	Equivalent< br> MMPA Class	Near Br	Near HcJ	℃	℃
*LN9	680	6800	30	380	9	1.13	6.9	Alnico 3	-0.03	-0.02	810	450
*LN10	600	6000	40	500	10	1.2	6.9	Alnico 3	-0.03	-0.02	810	450
*LNG12	720	7200	45	500	12.4	1.55	7	Alnico 2	-0.03	-0.02	810	450
*LNG13	700	7000	48	600	12.8	1.6	7	Alnico 2	-0.03	-0.02	810	450
LNG37	1200	12000	48	600	37	4.65	7.3	Alnico 5	-0.02	0.03	860	525
LNG40	1250	12500	48	600	40	5	7.3
LNG44	1250	12500	52	650	44	5.5	7.3
LNG52	1300	13000	56	700	52	6.5	7.3	Alnico 5DG
LNG60	1350	13500	59	740	60	7.5	7.3	Alnico 5-7
LNGT28	1000	10000	58	720	28	3.5	7.3	Alnico 6	-0.02	0.03	860	525
LNGT36J< /div>	700	7000	140	1750	36	4.5	7.3	Alnico 8HC	-0.025	0.02	860	550
*LNGT18< /div>	580	5800	100	1250	18	2.2	7.3	Alnico 8	-0.025	0.02	860	550
LNGT32	800	8000	100	1250	32	4	7.3	Alnico 8	-0.025	0.02	860	550
LNGT40	800	8000	110	1380	40	5	7.3	Alnico 8	-0.025	0.02	860	550
LNGT60	900	9000	110	1380	60	7.5	7.3	Alnico 9	-0.025	0.02	860	550
