High Residual Blocks Alnico 5 Magnet Corrosion Resistance For Generator

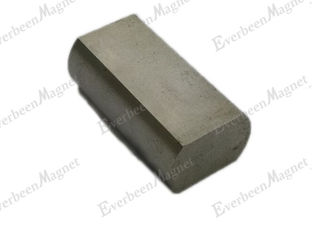

Large Image : High Residual Blocks Alnico 5 Magnet Corrosion Resistance For Generator

Product Details:

Place of Origin:	CN
Brand Name:	Everbeen Magnet
Certification:	ISO9001
Model Number:	YS-Alnico-27

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Negotiation
Packaging Details:	Export packing, cartons, pallets
Delivery Time:	25~30 days
Payment Terms:	T/T , Western Union
Supply Ability:	500Ton/year

Detailed Product Description

Shape:	Customized Block	Coating:	None
Dimension:	As Drawing	Material:	Alinico

High Residual Blocks Alnico 5 Magnet Corrosion Resistance For Generator

Description :
Alnico magnets, composed of primarily aluminum, nickel, and cobalt, were developed in the 1940's. This class of magnet remains a preferred material because of it's excellent temperature stability, high magnetic flux density, and resistance to corrosion. Alnico magnets are manufactured through a casting or sintering process.

Item name	YS-Alnico-27
Working temperature	550-600 °C
Shape	Pot, Round , disc,ring, holding
Application	work holding devices for welding, wood cutting, sign making and other applications.

Quick Detail:

1. Density - 7.3 g/cm3
2. Manufacturing process - casting (most common)
3. Various shapes- blocks, bars, discs, rings, horseshoes, cylinders, etc.
4. Saturation magnetizing field required - about 5kOe.

Magnetic property

Grade	Br		HcJ		(BH)max		D	Equivalent< br> MMPA Class	% Change Per C		Tc< /div>	Tw
Grade	mT	Gs	KA/m	Oe	KJ/m³	MGOe	g/cm³	Equivalent< br> MMPA Class	Near Br	Near HcJ	℃	℃
*LN9	680	6800	30	380	9	1.13	6.9	Alnico 3	-0.03	-0.02	810	450
*LN10	600	6000	40	500	10	1.2	6.9	Alnico 3	-0.03	-0.02	810	450
*LNG12	720	7200	45	500	12.4	1.55	7	Alnico 2	-0.03	-0.02	810	450
*LNG13	700	7000	48	600	12.8	1.6	7	Alnico 2	-0.03	-0.02	810	450
LNG37	1200	12000	48	600	37	4.65	7.3	Alnico 5	-0.02	0.03	860	525
LNG40	1250	12500	48	600	40	5	7.3
LNG44	1250	12500	52	650	44	5.5	7.3
LNG52	1300	13000	56	700	52	6.5	7.3	Alnico 5DG
LNG60	1350	13500	59	740	60	7.5	7.3	Alnico 5-7
LNGT28	1000	10000	58	720	28	3.5	7.3	Alnico 6	-0.02	0.03	860	525
LNGT36J< /div>	700	7000	140	1750	36	4.5	7.3	Alnico 8HC	-0.025	0.02	860	550
*LNGT18< /div>	580	5800	100	1250	18	2.2	7.3	Alnico 8	-0.025	0.02	860	550
LNGT32	800	8000	100	1250	32	4	7.3	Alnico 8	-0.025	0.02	860	550
LNGT40	800	8000	110	1380	40	5	7.3	Alnico 8	-0.025	0.02	860	550
LNGT60	900	9000	110	1380	60	7.5	7.3	Alnico 9	-0.025	0.02	860	550

High Residual Blocks Alnico 5 Magnet Corrosion Resistance For Generator

Tag:

alnico horseshoe magnet,

alnico round magnet
