Alnico 3 Permanent Alnico Permanent Magnets for Chuck Corrosion High Temp Customized

China Alnico 3  Permanent Alnico Permanent Magnets for Chuck Corrosion High Temp Customized supplier

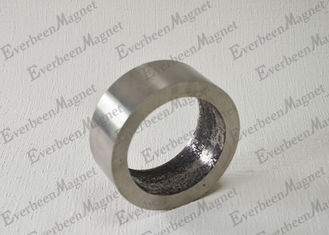

Large Image :  Alnico 3 Permanent Alnico Permanent Magnets for Chuck Corrosion High Temp Customized

Product Details:

Place of Origin: CN
Brand Name: Everbeen Magnet
Certification: ISO9001
Model Number: YS-Alnico-21

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: Cartons
Delivery Time: 25~30 days
Payment Terms: T/T , Western Union
Supply Ability: 500Ton/year
Detailed Product Description
Process: Casting Coating: None
Dimension: Custom Upon Request Material: Aluminum, Nickel, Cobalt



Alnico 3 Permanent Magnets For Magnetic Chuck Corrosion High Temp AlNiCo magnet​



Description :


Alnico magnets, composed of primarily aluminum, nickel, and cobalt, were developed in the 1940's. This class of magnet remains a preferred material because of it's excellent temperature stability, high magnetic flux density, and resistance to corrosion. Alnico magnets are manufactured through a casting or sintering process. The casting process allows for the magnet to be manufactured into intricate and complex shapes, which are not possible with other magnetic materials.



Applications of Cast Alnico



Electronic Perament Magnetic Chuck

Magnetic Clamp System

Magnetic lifter

Sensitive Relays and transformers

Holding magnets

Instruments



Attributes of Cast Alnico


• Very temperature stable, great for high heat applications
• Working temperature can reach 550-600 °C

• High residual induction and energy product compared to ceramic material
• Low coercive force compared to ceramic and rare earth materials (more subject to demagnetization)
• Does not lend itself to conventional machining (hard and brittle)

Alnico 3  Permanent Alnico Permanent Magnets for Chuck Corrosion High Temp Customized

Alnico 3  Permanent Alnico Permanent Magnets for Chuck Corrosion High Temp Customized









Item name YS-Alnico-21
Working temperature 550-600 °C
Shape

Block, Ring, Arc

Application Holding Magnets, Electronic Perament Magnetic Chuck



Grade Br HcJ (BH)max D Equivalent< br> MMPA Class % Change Per C Tc< /div> Tw
mT Gs KA/m Oe KJ/m3 MGOe g/cm3 Near Br Near HcJ
*LN9 680 6800 30 380 9 1.13 6.9 Alnico 3 -0.03 -0.02 810 450
*LN10 600 6000 40 500 10 1.2 6.9 -0.03 -0.02 810 450
*LNG12 720 7200 45 500 12.4 1.55 7 Alnico 2 -0.03 -0.02 810 450
*LNG13 700 7000 48 600 12.8 1.6 7
LNG37 1200 12000 48 600 37 4.65 7.3 Alnico 5 -0.02 0.03 860 525
LNG40 1250 12500 48 600 40 5 7.3
LNG44 1250 12500 52 650 44 5.5 7.3
LNG52 1300 13000 56 700 52 6.5 7.3 Alnico 5DG
LNG60 1350 13500 59 740 60 7.5 7.3 Alnico 5-7
LNGT28 1000 10000 58 720 28 3.5 7.3 Alnico 6 -0.02 0.03 860 525
LNGT36J< /div> 700 7000 140 1750 36 4.5 7.3 Alnico 8HC -0.025 0.02 860 550
*LNGT18< /div> 580 5800 100 1250 18 2.2 7.3 Alnico 8 -0.025 0.02 860 550
LNGT32 800 8000 100 1250 32 4 7.3 Alnico 8 -0.025 0.02 860 550
LNGT40 800 8000 110 1380 40 5 7.3
LNGT60 900 9000 110 1380 60 7.5 7.3 Alnico 9 -0.025 0.02 860 550
