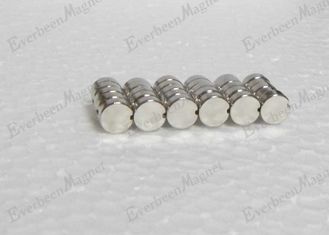

N42SH Neodymium Rare Earth Magnets Disc6x2.5mm High Temp Nickel coating For Encoder

Large Image : N42SH Neodymium Rare Earth Magnets Disc6x2.5mm High Temp Nickel coating For Encoder

Product Details:

Place of Origin:	CN
Certification:	ISO9001
Model Number:	YSNEO-580

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Upon the exact dimension
Packaging Details:	Standard Export package : Cartons, pallets or Cases
Delivery Time:	15~20 days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	500Ton/year

Detailed Product Description

Shape:	DISC	Material:	Rare Earth
Coating:	Ni	Max. Working Temp.:	150 Celsius Degree
Tolerance:	+/-0.05mm	Export Port:	Xaimen Port

N42SH Neodymium Rare Earth Magnets Disc6x2.5mm High Temp Nickel coating For Encoder

Our company has advanced scientific research and production equipments, strictly following ISO9002 Quality Management System to manufacture. We continuously strengthen inner management. From melting, milling, sinter and then process, all the working procedure are very perfect. The manufacturing technique are excellent. We can supply various dimension neodymium magnets with high property and enduring high temperature. The mainly higher product Grade is N45, N48, N50, N52, 48M, 50M, 44H, 46H, 48H, 42SH, 44SH, 38UH, 40UH, 33EH, 35EH. With Neodymium magnet rapid development, many high-tech products were developed. Especially its application in motors makes products miniaturization and micromation.

Specificaion

Material	rare earth
Grade	N42SH
Shape	Block
Plating	Ni or Zinc
Max. Working TEMP.	150Celsius Degree
Density	7.4 g/cm3

Application:

Medical Device: Magnetic Resonance Image Device,Water Magnetizer,Magnetic Therary Device.

Miceo motor and special motor: Voice Coil Motor(VCM),step Motor,Texture Motor,Geared down Moror,Disk Motor,Servo Motor,and Permanent-Dynamic System.

Excellent cost to performance ratio
High resistance to magnetic demagnetization

High flux, High remanence, high coercive force, high energy

Low temperature coefficient and low loss of irreversible

N42SH Neodymium Rare Earth Magnets Disc6x2.5mm High Temp Nickel coating For Encoder

Magnetic Characteristic

Grade	Br mt(KG)	Hcb Koe(KA/m)	iHc Koe(KA/m)	(BH)max	TW℃
				KJ/m³ (MGOe)
30SH	1080-1130(10.8-11.3)	≧10.0(≧796)	≧21(≧1672)	223-247(28-31)	150
33SH	1130-1170(11.3-11.7)	≧10.6(≧844)	≧21(≧1672)	247-263(31-33)	150
35SH	1170-1210(11.7-12.1)	≧11.0(≧876)	≧21(≧1672)	263-287(33-36)	150
38SH	1210-1250(12.1-12.5)	≧11.4(≧907)	≧21(≧1672)	287-310(36-39)	150
40SH	1250-1280(12.5-12.8)	≧11.8(≧939)	≧21(≧1672)	302-326(38-41)	150
42SH	1280-1320(12.8-13.2)	≧11.8(≧939)	≧21(≧1672)	320-343(40-43)	150

Welcome to contact us.
