Long Rod Alnico Permanent Magnets 4.95 * 16.5mm 450 ~ 550 °CFor Electronic Sensors

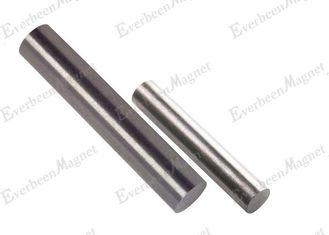

Large Image : Long Rod Alnico Permanent Magnets 4.95 * 16.5mm 450 ~ 550 °CFor Electronic Sensors

Product Details:

Place of Origin:	CN
Certification:	ISO9001
Model Number:	YS-Alnico-01

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	Export packing, cartons, pallets
Delivery Time:	15~20 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500Ton/year

Detailed Product Description

Shape:	Long Rod	Coating:	No
Dimension:	Customized Upon Requests	Working Tempreture:	450~550 °C
Size:	4.95*16.5mm	Application:	Various Sensors

Alnico Rod Magnets Alnico Permanent Magnets For Electronic Sensors

Alnico magnets are made primarily from aluminum , nickel , cobalt , copper , iron and sometimes titanium. It has very good corrosion resistance and high temperature operation.

Item name	YS-Alnico-01
Working temperature	450~550 °C
Shape	Round , disc . ring
Manufacturing Process	Casting

Attributes of Alnico

• Very temperature stable, great for high heat applications
• Working temperature can reach 550-600 °C
• Does not lend itself to conventional machining (hard and brittle)
• High residual induction and energy product compared to ceramic material
• Low coercive force compared to ceramic and rare earth materials (more subject to demagnetization)

Applications of Alnico Magnets

Sensors
Electron tubes
Traveling wave tubes
Radar
Holding magnets
Clutches and bearings
Motors
Relays
Controls
Generators
Receivers
Telephones
Microphones
Bell ringers
Loudspeakers
Educational products

Magnetic characteristic of cast AlNiCo

Grade	Br		HcJ		(BH)max		D	Equivalent< br> MMPA Class	% Change Per C		Tc< /div>	Tw
Grade	mT	Gs	KA/m	Oe	KJ/m³	MGOe	g/cm³	Equivalent< br> MMPA Class	Near Br	Near HcJ	℃	℃
*LN9	680	6800	30	380	9	1.13	6.9	Alnico 3	-0.03	-0.02	810	450
*LN10	600	6000	40	500	10	1.2	6.9	Alnico 3	-0.03	-0.02	810	450
*LNG12	720	7200	45	500	12.4	1.55	7	Alnico 2	-0.03	-0.02	810	450
*LNG13	700	7000	48	600	12.8	1.6	7	Alnico 2	-0.03	-0.02	810	450
LNG37	1200	12000	48	600	37	4.65	7.3	Alnico 5	-0.02	0.03	860	525
LNG40	1250	12500	48	600	40	5	7.3
LNG44	1250	12500	52	650	44	5.5	7.3
LNG52	1300	13000	56	700	52	6.5	7.3	Alnico 5DG
LNG60	1350	13500	59	740	60	7.5	7.3	Alnico 5-7
LNGT28	1000	10000	58	720	28	3.5	7.3	Alnico 6	-0.02	0.03	860	525
LNGT36J< /div>	700	7000	140	1750	36	4.5	7.3	Alnico 8HC	-0.025	0.02	860	550
*LNGT18< /div>	580	5800	100	1250	18	2.2	7.3	Alnico 8	-0.025	0.02	860	550
LNGT32	800	8000	100	1250	32	4	7.3	Alnico 8	-0.025	0.02	860	550
LNGT40	800	8000	110	1380	40	5	7.3	Alnico 8	-0.025	0.02	860	550
LNGT60	900	9000	110	1380	60	7.5	7.3	Alnico 9	-0.025	0.02	860	550
