7.3 g/cm3 Density Alnico 5 Alnico Permanent Magnets Block Shape For Guitar Pickup Application

China 7.3 g/cm3 Density Alnico 5 Alnico Permanent Magnets Block Shape For Guitar Pickup Application supplier
7.3 g/cm3 Density Alnico 5 Alnico Permanent Magnets Block Shape For Guitar Pickup Application supplier 7.3 g/cm3 Density Alnico 5 Alnico Permanent Magnets Block Shape For Guitar Pickup Application supplier

Large Image :  7.3 g/cm3 Density Alnico 5 Alnico Permanent Magnets Block Shape For Guitar Pickup Application

Product Details:

Place of Origin: CN
Certification: ISO9001
Model Number: YS-Alnico-24

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Standard Export packing, cartons, pallets
Delivery Time: 25~30 days
Payment Terms: T/T , Western Union
Supply Ability: 500Ton/year
Detailed Product Description
Material: Aluminum, Nickel, Cobalt, Copper Finish: No Coating
Shape: Block, Bar Grade: Alnico 5
Density: 7.3 G/cm3 Size: Customized

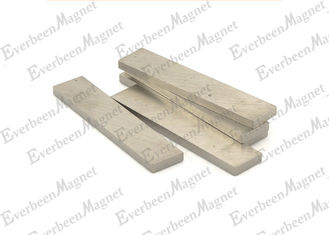

7.3 g/cm3 Density Alnico 5 Permanent Magnet Block Shape For Guitar Pickup Application



 Alnico 5 Block magnet is composed primarily of Aluminum, Nickel, Cobalt, Copper and Iron. It has very good corrosion resistance and high temperature operation.

Although other magnetic materials offer greater energy and coercivity values, the high remanence and thermal stability of AlNiCo makes it the most effective magnetic material for certain applications, like generator, microphone, lifting, voltmeter and measuring instruments. It is widely applied in high stability fields like aerospace, military, automobile and security systems.



Their Advantage: 1. They have stable temperature coefficient and great for heat applications. The working temperature can reach 550-600 °C.

2. High residual induction and energy product compared to ceramic material

3. Low coercive force compared to ceramic and rare earth materials (more subject to demagnetization)



Shortage: Cast Alnico Magnet are hard and brittle, not easily to conventional machining.



The common grade is AlNiCo 5 and AlNiCo 8.



Applications:



Instruments

Guitar pickups





Physical Properties of Cast Alnico
Curie Temperature (℃) 760-890
Max. Operating Temperature (℃) 450-550
Resistivity (μohm.cm) 47-54
Hardness (Hv) 520-630
Density (g/cm³) 6.90-7.30
Relative Recoil Permeability (μrec) 1.70-4.70
Saturation Field Strength (kOe,kA/m) 2.7-6.3/215-500
Temperature Coefficient of Br (%/℃) -0.025 ~ -0.02
Temperature Coefficient of iHc (%/℃) +0.01 ~ +0.03



Magnetic Property for Cast Alnico Magnet



Grade Br HcJ (BH)max D Equivalent< br> MMPA Class % Change Per C Tc< /div> Tw
mT Gs KA/m Oe KJ/m3 MGOe g/cm3 Near Br Near HcJ
LN9 680 6800 30 380 9 1.13 6.9 Alnico 3 -0.03 -0.02 810 450
LN10 600 6000 40 500 10 1.2 6.9 -0.03 -0.02 810 450
LNG12 720 7200 45 500 12.4 1.55 7 Alnico 2 -0.03 -0.02 810 450
LNG13 700 7000 48 600 12.8 1.6 7
LNG37 1200 12000 48 600 37 4.65 7.3 Alnico 5 -0.02 0.03 860 525
LNG40 1250 12500 48 600 40 5 7.3
LNG44 1250 12500 52 650 44 5.5 7.3
LNG52 1300 13000 56 700 52 6.5 7.3 Alnico 5DG
LNG60 1350 13500 59 740 60 7.5 7.3 Alnico 5-7
LNGT28 1000 10000 58 720 28 3.5 7.3 Alnico 6 -0.02 0.03 860 525
LNGT36J 700 7000 140 1750 36 4.5 7.3 Alnico 8HC -0.025 0.02 860 550
LNGT18 580 5800 100 1250 18 2.2 7.3 Alnico 8 -0.025 0.02 860 550
LNGT32 800 8000 100 1250 32 4 7.3 Alnico 8 -0.025 0.02 860 550
LNGT40 800 8000 110 1380 40 5 7.3
LNGT60 900 9000 110 1380 60 7.5 7.3 Alnico 9 -0.025 0.02 860 550
