| Material: | Neodymium, Iron, Boron | Grade: | N52 |
|---|---|---|---|
| Surface Treatment: | Zinc Coated | Magnetized: | Axial |
| Shape: | Cylinder | Size: | 1/4" Dia. X 3/8" Thick |

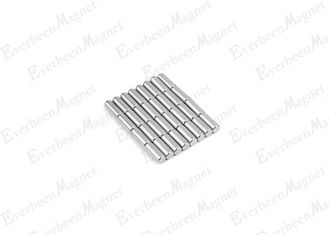

1/4" dia. x 3/8" thick Cylinder Neodymium Disc Magnets N52 Grade For Electric Products
Neodymium magnet (Nd-Fe-B) is one of the highest property and strongest permanent magnet by now, are made through powder metallurgy manufacturing techniques. They are mainly composed of neodymium(32%), iron(64%), boron(1%), and a few quantity rare earth material, such as Dy, Tb, Co, Nb, Ga, Al, Cu,etc. Neodymium magnet is regarded as “Magnet King” due to its recorded high remanence, coercive force and maximum energy product. With Neodymium magnet rapid development, many high-tech products were developed. Especially its application in motors makes products miniaturization and micromation. At the same time, because of its high remanence, coercive force and maximum energy product, this type magnet is widely used in servo motor, flat brushless motor, step motor, IT products, Nuclear Magnetic Resonance, speaker and other products. Neodymium magnet is easily rust and oxidated, so their surface must be plated Zn, Ni, Silver, Gold or made phosphor and epoxy treatment.
Applications
Specification
| Material | Neodymium, Iron, Boron |
| Grade | N52 |
| Shape | Cylinder |
| Coating | Zinc |
| Dimension | 1/4" dia. x 3/8" thick or customized |
| Tolerance | +/-0.05mm |
