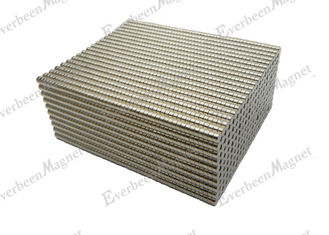

Small Disc Circular Neodymium Magnet Nickel Dia1/8 inch For Fasteners / Button
Small Disc magnet (Nd-Fe-B) is one of the highest property and strongest permanent magnet by now, are made through powder metallurgy manufacturing techniques. They are mainly composed of neodymium(32%), iron(64%), boron(1%), and a few quantity rare earth material, such as Dy, Tb, Co, Nb, Ga, Al, Cu,etc.
Everbeen Advantage:
Everbeen Magnet is specialized in various permanent magnets, and has been involved in production, technical research and sales in magnet field for more than 15 years. We mainly produce sintered Neodymium magnet of various grades, We can customize the magnets according to clients’ design and requests.
Everbeen Magnet has won the trust and good reputation from domestic and foreign famous enterprises under the commercial idea of “Profession, High Efficient, Honesty and Respect”. Over 70% of our magnets are sold to Southeast Asia, European and American area.
Magnetic Characteristic of Sintered NdFeB Magnet
| Grade |
Br mt(KG) |
Hcb Koe(KA/m) |
iHc Koe(KA/m) |
(BH)max KJ/m3 (MGOe) |
TW℃ |
| N35 |
1170-1210(11.7-12.1) |
≧10.8(≧860) |
≧12(≧955) |
263-287(33-36) |
80 |
| N38 |
1210-1250(12.1-12.5) |
≧10.8(≧860) |
≧12(≧955) |
287-310(36-39) |
80 |
| N40 |
1250-1280(12.5-12.8) |
≧11.6(≧923) |
≧12(≧955) |
302-326(38-41) |
80 |
| N42 |
1280-1320(12.8-13.2) |
≧11.6(≧923) |
≧12(≧955) |
318-342(40-43) |
80 |
| N45 |
1320-1380(13.2-13.8) |
≧11.0(≧876) |
≧12(≧955) |
342-366(43-46) |
80 |
| N48 |
1380-1420(13.8-14.2) |
≧10.5(≧835) |
≧12(≧955) |
366-390(46-49) |
80 |
| N50 |
1380-1450(13.8-14.5) |
≧10.5(≧835) |
≧12(≧955) |
474-406(47-51) |
80 |
Application Fields of NdFeB Magnet
Miceo motor and special motor: Voice Coil Motor(VCM),step Motor,Texture Motor,Geared down Moror,Disk Motor,Servo Motor,and Permanent-Dynamic System.
Sonic Equipment: Earphone ,Microphone,Loudspeaker.
Apparatus: Electricity Meter,Velometer,Flow-meter,Tachometer.
Medical Device: Magnetic Resonance Image Device,Water Magnetizer,Magnetic Therary Device.
Industry installation: Magnetic Clamp, Magnetic Crane/Magnetic Lift, Magnetize Filter, CD-ROM, petrol dewaxing Equipment, Magnetic Coupler, Magnetic Switch, Generator, Magnetic Separator.
Advantage:
1. Neodymium magnet is regarded as “Magnet King” due to its recorded high remanence, coercive force and maximum energy product.
2. With Neodymium magnet rapid development, many high-tech products were developed. Especially its application in motors makes products miniaturization and micromation.
3. At the same time, because of its high remanence, coercive force and maximum energy product, this type magnet is widely used in servo motor, flat brushless motor, step motor, IT products, Nuclear Magnetic Resonance, speaker and other products.
