Product Details:
Payment & Shipping Terms:
|
| Material: | Neodymium, Iron, Boron | Grade: | N35 TO N52 |
|---|---|---|---|
| Shape: | Block, Bar | Max. Working Temp.: | 80 Celsius Degree |
| Surface Finished: | Ni Or Zinc | Size: | 20 * 10 * 1 Mm Or Customized Upon Design |

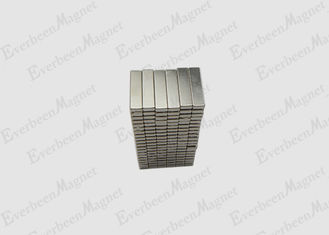

20 * 10 * 1 mm Neodymium Block Magnets Car Magnets Magnetized Through Thickness
Neodymium magnets (Nd-Fe-B) are composed of neodymium, iron, boron and a few transition metals. These magnets are extremely strong for their small size, metallic in appearance and found in simple shapes such as rings, blocks and discs. Their max energy product can be 35MGOe~50MGOe , Neodymium magnets are developed rapidly and applied widely due to their perfect characteristic, rich raw material resource and reasonable price.
Block magnets are defined by three dimensions: Length, Width and Thickness. To be consistent, we define the Thickness dimension along the axis of magnetization. The thickness is usually the smallest dimension, but not always!
Applications of Neodymium Block Magnets
Specification
| Shape | Block shape |
| Grade | N35 TO N52 |
| Material | Neodymium, Iron, Boron |
| Plating | Ni Coated |
| Dimension | 20 * 10 * 1 mm |
| Tolerance | +/-0.05mm |
