Material: | Fe2O3 And BaO Or SrO And More | Specificatiom: | 2*2*1/4 Inch |
---|---|---|---|
Shape: | Block | Application: | Motors, Cleaning Machines, And Medical Equipment |

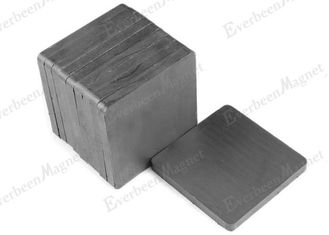

Large Ceramic Block Magnets C8 Grade , 2 * 2 * 1/4 inch For Clean Machines
Description :
Ferrite magnets are composed of SrO or BaO and Fe2O3. They usually appear in the forms of discs, rings, blocks, cylinders, and sometimes arcs or segments for motors.
Specification
Item number | YSFM-20 |
Material | SrO or BaO and Fe2O3 |
Size |
2 * 2 *1/4 inch Or Customized
|
Tolerance |
Thickness ± .005inch Others: ± 2% or ± .010inch |
Shape available | Block , ring , disc |
Purpose
|
widely used in motors, cleaning machines, and medical equipment
|
Magnetic characteristic
USA standard
Material | Br | Hcb | Hcj | (BH)max | ||||
mT | KG | KA/m | KOe | KA/m | KOe | KJ/m3 | MGOe | |
C1 | 230 | 2.3 | 148 | 1.86 | 258 | 3.5 | 8.36 | 1.05 |
C5 | 380 | 3.8 | 191 | 2.4 | 199 | 2.5 | 27 | 3.4 |
C7 | 340 | 3.4 | 258 | 3.23 | 318 | 4.00 | 21.9 | 2.75 |
C8(C8A) | 385 | 3.85 | 235 | 2.95 | 242 | 3.05 | 27.8 | 3.5 |
C9 | 380 | 3.8 | 280 | 3.516 | 320 | 4.01 | 26.4 | 3.32 |
C10 | 400 | 4.0 | 288 | 3.617 | 280 | 3.51 | 30.4 | 3.82 |
C11 | 430 | 4.3 | 200 | 2.512 | 204 | 2.56 | 34.4 | 4.32 |
