Material: | Fe2O3 And BaO Or SrO | Specificatiom: | As Drawing |
---|---|---|---|
Shape: | Segment Or Others | Properties: | Y30H-1,Y30H-2and Y33 (China Standard) |
Grade: | Y30BH | Magnetized: | Yes |

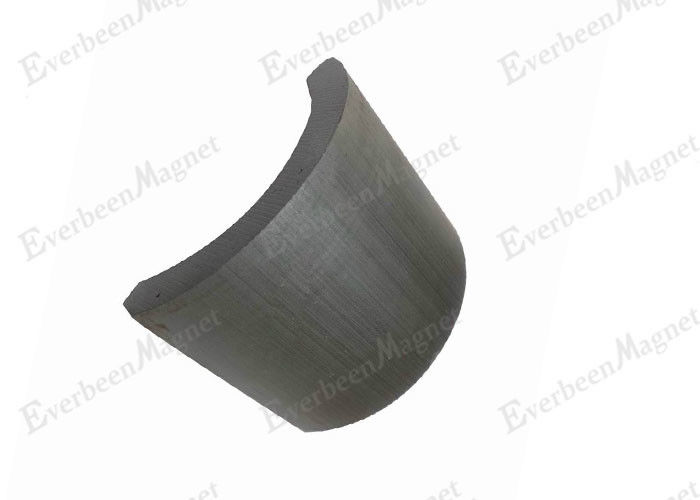

Tile Ceramic Magnets , ARC MAGNETS Y30BH Ceramic Permanent Magnet for Meter Sensors
Description :
Ferrite Segment Magnets with C5, C8 and C11 Properties, Widely Used in Automobile Motors, Motorcycle Motors,General dynamo Motors. The quality and characteristics of our ferrite products have been fit for the standard of Y30BH, Y35, which are equal to C7, C8A, C8B, C9~C12 in MMPA, the American standard.
Special Features:
Item number | YSFM-ARC-2 |
Material | SrO or BaO and Fe2O3 |
Minimum diatemer | 3mm, with dot or no mark |
Tolerance |
Thickness ± .005inch Others: ± 2% or ± .010inch |
Shape available | arc, segment, block, round |
Application |
Automobile Motors, Motorcycle Motors,General dynamo Motors
|
Material | Br | Hcb | Hcj | (BH)max | ||||
mT | KG | KA/m | KOe | KA/m | KOe | KJ/m3 | MGOe | |
C1 | 230 | 2.3 | 148 | 1.86 | 258 | 3.5 | 8.36 | 1.05 |
C5 | 380 | 3.8 | 191 | 2.4 | 199 | 2.5 | 27 | 3.4 |
C7 | 340 | 3.4 | 258 | 3.23 | 318 | 4.00 | 21.9 | 2.75 |
C8(C8A) | 385 | 3.85 | 235 | 2.95 | 242 | 3.05 | 27.8 | 3.5 |
C9 | 380 | 3.8 | 280 | 3.516 | 320 | 4.01 | 26.4 | 3.32 |
C10 | 400 | 4.0 | 288 | 3.617 | 280 | 3.51 | 30.4 | 3.82 |
C11 | 430 | 4.3 | 200 | 2.512 | 204 | 2.56 | 34.4 | 4.32 |
