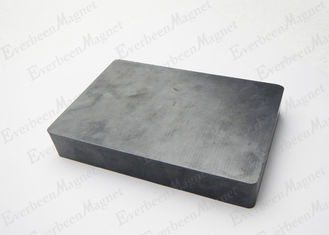

Block Ceramic Magnets 150 * 100 * 25.4 mm Thickness For Magnetic Separator
-
-
Large Image :
Block Ceramic Magnets 150 * 100 * 25.4 mm Thickness For Magnetic Separator
|
Product Details:
| Place of Origin: |
CHINA |
| Certification: |
ISO9001:2015 |
| Model Number: |
YSFM-BLOCK-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
100pcs/1000pcs |
| Price: |
Negotiation |
| Packaging Details: |
Standard sea packing |
| Delivery Time: |
7-15days |
| Payment Terms: |
L/C, T/T |
| Supply Ability: |
1000,000pcs/week |
|
Detailed Product Description
| Material: |
Fe2O3, BaO Or SrO |
Shape: |
Big BLock |
| Grade: |
Y30 , Y30H-1,Y30H-2and Y33 |
Packing: |
Standard Sea Shipment Packing, Cartons With Pallets |
| Magnetized: |
Through Thickness |
Size: |
150 * 100 * 25.4 Mm |
150 * 100 * 25.4 mm Thickness Block Ceramic Magnets For Magnetic Separator
Ceramic (ferrite) magnets are composed of SrO or BaO and Fe2O3. They usually appear in the forms of discs, rings, blocks, cylinders, and sometimes arcs or segments for motors.
| Item number |
YSFM-DISK-02 |
| Material |
SrO or BaO and Fe2O3 |
| Working temperature |
-40 °C and +200 °C |
| Density |
4.7-5.0g/cm3 |
| Shape available |
Block |
| Application |
Magnetic Separator
|
Applications of Ceramic Magnets
- Separators (separate ferrous material from non-ferrous)
- DC brushless motors
- Magnetic Resonance Imaging (MRI)
- Magnetos used on lawnmowers and outboard motors
- DC permanent magnet motors (used in cars)
- Used in magnetic assemblies designed for lifting, holding, retrieving and separating
Attributes of Ceramic Magnets
- Least expensive material compared to alnico and rare earth magnets
- Available in simple shapes only due to manufacturing process
- Lower service temperature than alnico, greater than rare earth
- Lower energy product than alnico and rare earth magnets
- Most common grades of Y25,Y30,Y30H-1,Y30H-2,Y32,Y33 ceramic are 1, 5 and 8 (1-8 possible)
- High intrinsic coercive force
-
Magnetizing Direction
