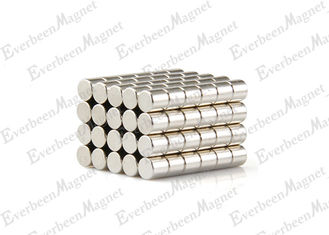

Circle Magnet Dia 4 * 4 mm NdFeB Magnets Coated NiCuNi For Magnetic Clamp
-
-
Large Image :
Circle Magnet Dia 4 * 4 mm NdFeB Magnets Coated NiCuNi For Magnetic Clamp
|
Product Details:
| Place of Origin: |
China |
| Certification: |
ISO9001 |
| Model Number: |
YSNEO-566 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
5000pcs |
| Price: |
Negotiated |
| Packaging Details: |
Cartons for Air shipment |
| Delivery Time: |
10~15 days after confirmed order |
| Payment Terms: |
T/T, Western Union, L/C |
| Supply Ability: |
600Ton/year |
|
Detailed Product Description
| Shape: |
Circle Or Disc Shape |
Colour: |
Silver |
| Size: |
Dia 4 * 4 Mm Thickness |
Material: |
NdFeB |
| Density: |
7.4 G/cm3 |
Max. Temp.: |
80 Celsius Degree |
Circle Magnet Dia 4 * 4 mm NdFeB Magnets Coated NiCuNi For Magnetic Clamp
- NdFeB Permanent Magnet are mainly composed of neodymium(32%), iron(64%), boron(1%), and a few quantity rare earth material, such as Dy, Tb, Co, Nb, Ga, Al, Cu,etc. Neodymium magnet is regarded as “Magnet King” due to its recorded high remanence, coercive force and maximum energy product.
- With NdFeB magnet rapid development, many high-tech products were developed. Especially its application in motors makes products miniaturization and micromation. At the same time, because of its high remanence, coercive force and maximum energy product, this type magnet is widely used in servo motor, flat brushless motor, step motor, IT products, Nuclear Magnetic Resonance, speaker and other products.
- Neodymium magnet is easily rust and oxidated, so their surface must be plated Zn, Ni, Silver, Gold or made phosphor and epoxy treatment.
Grade and Magnetic Property of NdFeB Magnet
| Grade |
Br mt(KG) |
Hcb Koe(KA/m) |
iHc Koe(KA/m) |
(BH)max KJ/m3 (MGOe) |
TW℃ |
| N35 |
1170-1210(11.7-12.1) |
≧10.8(≧860) |
≧12(≧955) |
263-287(33-36) |
80 |
| N38 |
1210-1250(12.1-12.5) |
≧10.8(≧860) |
≧12(≧955) |
287-310(36-39) |
80 |
| N40 |
1250-1280(12.5-12.8) |
≧11.6(≧923) |
≧12(≧955) |
302-326(38-41) |
80 |
| N42 |
1280-1320(12.8-13.2) |
≧11.6(≧923) |
≧12(≧955) |
318-342(40-43) |
80 |
| N45 |
1320-1380(13.2-13.8) |
≧11.0(≧876) |
≧12(≧955) |
342-366(43-46) |
80 |
| N48 |
1380-1420(13.8-14.2) |
≧10.5(≧835) |
≧12(≧955) |
366-390(46-49) |
80 |
| N50 |
1380-1450(13.8-14.5) |
≧10.5(≧835) |
≧12(≧955) |
474-406(47-51) |
80 |
Application of NdFeB Magnet
- Earphone ,Microphone,Loudspeaker.
- Electricity Meter,Velometer,Flow-meter,Tachometer.
- Magnetic Resonance Image Device,Water Magnetizer,Magnetic Therary Device.
- Voice Coil Motor(VCM),step Motor,Texture Motor,Geared down Moror,Disk Motor,Servo Motor,and Permanent-Dynamic System.
- Magnetic Clamp, Magnetic Crane/Magnetic Lift, Magnetize Filter, CD-ROM, petrol dewaxing Equipment, Magnetic Coupler,Magntic Switch, Generator, Magnetic Separator.
Magnetized Orientation:
Export Packing show:
