| Colour: | Bright Silver | Plating: | NiCuNi |
|---|---|---|---|
| Material: | Permanent Neodymium Magnet | Size: | Customized Size |
| Shape: | Disc Or Round | Magnetized: | Axially Or Diametrically |

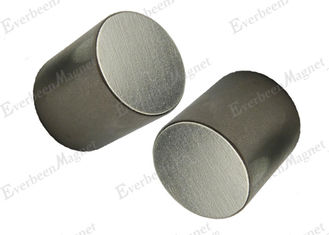

Big Neodymium Permenent Magnets Rare Earth Round Nickel Used in Printer and Switchboard
Neodymium magnet (Nd-Fe-B) is one of the highest property and strongest permanent magnet by now, are made through powder metallurgy manufacturing techniques. They are mainly composed of neodymium(32%), iron(64%), boron(1%), and a few quantity rare earth material, such as Dy, Tb, Co, Nb, Ga, Al, Cu,etc.
Advantage:
1. Neodymium magnet is regarded as “Magnet King” due to its recorded high remanence, coercive force and maximum energy product.
2. With Neodymium magnet rapid development, many high-tech products were developed. Especially its application in motors makes products miniaturization and micromation.
3. At the same time, because of its high remanence, coercive force and maximum energy product, this type magnet is widely used in servo motor, flat brushless motor, step motor, IT products, Nuclear Magnetic Resonance, speaker and other products.
Performance Details
| Grade | Br mt(KG) | Hcb Koe(KA/m) | iHc Koe(KA/m) | (BH)max KJ/m3 (MGOe) | TW℃ |
| N35 | 1170-1210(11.7-12.1) | ≧10.8(≧860) | ≧12(≧955) | 263-287(33-36) | 80 |
| N38 | 1210-1250(12.1-12.5) | ≧10.8(≧860) | ≧12(≧955) | 287-310(36-39) | 80 |
| N40 | 1250-1280(12.5-12.8) | ≧11.6(≧923) | ≧12(≧955) | 302-326(38-41) | 80 |
| N42 | 1280-1320(12.8-13.2) | ≧11.6(≧923) | ≧12(≧955) | 318-342(40-43) | 80 |
| N45 | 1320-1380(13.2-13.8) | ≧11.0(≧876) | ≧12(≧955) | 342-366(43-46) | 80 |
| N48 | 1380-1420(13.8-14.2) | ≧10.5(≧835) | ≧12(≧955) | 366-390(46-49) | 80 |
| N50 | 1380-1450(13.8-14.5) | ≧10.5(≧835) | ≧12(≧955) | 474-406(47-51) | 80 |
★ How to purchase the magnet?
In order to quote you accurate price, we need to check the necessary requirements about magnet as below:
