High Remanence N30/N35 / N42 Neodymium Magnets , Neodymium Magnets N50 High Coercive Force
Detailed Product Description
| Material: |
Neodymium , Iron, Boron |
Size: |
Custom Upon Design |
| Grade: |
N35 To N50 |
Magnetized: |
As Design |
| Max. Working Temp.: |
80 Celsius Degree |
Export PORT: |
Xiamen |

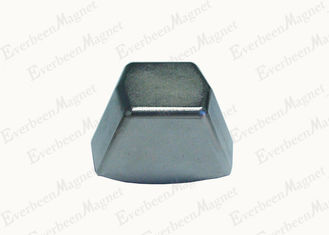

Super Strong Unique Shape Magnets Neodymium Custom Magnets For Holding
Neodymium magnets (Nd-Fe-B) are composed of neodymium, iron, boron and a few transition metals. These magnets are extremely strong for their small size, metallic in appearance and found in simple shapes such as rings, blocks and discs. Their max energy product can be 35MGOe~50MGOe , Neodymium magnets are developed rapidly and applied widely due to their perfect characteristic, rich raw material resource and reasonable price.
Property of Customized Magnet
| Grade | Br mt(KG) | Hcb Koe(KA/m) | iHc Koe(KA/m) | (BH)max KJ/m3 (MGOe) | TW℃ |
| N35 | 1170-1210(11.7-12.1) | ≧10.8(≧860) | ≧12(≧955) | 263-287(33-36) | 80 |
| N38 | 1210-1250(12.1-12.5) | ≧10.8(≧860) | ≧12(≧955) | 287-310(36-39) | 80 |
| N40 | 1250-1280(12.5-12.8) | ≧11.6(≧923) | ≧12(≧955) | 302-326(38-41) | 80 |
| N42 | 1280-1320(12.8-13.2) | ≧11.6(≧923) | ≧12(≧955) | 318-342(40-43) | 80 |
| N45 | 1320-1380(13.2-13.8) | ≧11.0(≧876) | ≧12(≧955) | 342-366(43-46) | 80 |
| N48 | 1380-1420(13.8-14.2) | ≧10.5(≧835) | ≧12(≧955) | 366-390(46-49) | 80 |
| N50 | 1380-1450(13.8-14.5) | ≧10.5(≧835) | ≧12(≧955) | 474-406(47-51) | 80 |
Applications of Sintered Neodymium Magnets
- Various holders
- DC motors (automotive starters) and other motors
- Computer rigid disc drives
- magnetic resonance imaging
- Meters
- Odometer
- sensors
Specification
| Material | Neodymium, Iron, Boron |
| Grade | N35 to N50 |
| Shape | Customized according to requests and design |
| Plating | Ni Or Zinc plated |
| Application | Various Holders |
| Magnetized Orientation | As requested |
