N42H Permanent Neodymium Magnets High Temp Motor 90 Degree Angle anti - corrosive
-
-
Large Image :
N42H Permanent Neodymium Magnets High Temp Motor 90 Degree Angle anti - corrosive
|
Product Details:
| Place of Origin: |
CN |
| Certification: |
ISO9001 |
| Model Number: |
YSNEO-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1000pcs Upon Dimension |
| Price: |
Negotiated |
| Packaging Details: |
Standard export package, boxes hold in Cartons |
| Delivery Time: |
12~15 days after confirmed order |
| Payment Terms: |
L/C, T/T, Western Union |
| Supply Ability: |
600Ton per Year |
|
Detailed Product Description
| Shape: |
Sector |
Grade: |
N42H |
| Coating: |
Nickel Plating |
Material: |
NdFeB |
| Size: |
Customized As Design And Requests |
Export Port: |
Xiamen Port |

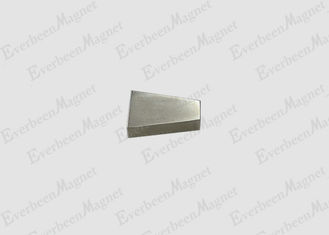

42H Sector Magnets Permanent Neodymium Magnets Arc Magnets For Ceiling Fan
Neodymium magnets (Nd-Fe-B) are composed of neodymium, iron, boron and a few transition metals. These magnets are extremely strong for their small size, metallic in appearance and found in simple shapes such as rings, blocks and discs. Their max energy product can be 35MGOe~50MGOe , Neodymium magnets are developed rapidly and applied widely due to their perfect characteristic, rich raw material resource and reasonable price.
Applications of Sector Neodymium Magnets
- Servo motors
- DC motors (automotive starters) and other motors
- Computer rigid disc drives
- magnetic resonance imaging
- Various holders
- Meters
- Odometer
- sensors
Specification
| Material |
NdFeB |
| Grade |
42H |
| Shape |
Sector |
| Plating |
Ni |
| Max. Working Temp. |
120 Celsius Degree |
| Tolerance |
+/-0.05mm |
Attributes of Neodymium Material
- Very high resistance to demagnetization
- High energy for size
- Good in ambient temperature
- Moderately priced
- Material is corrosive and should be coated for long term maximum energy output
- Low working temperature for heat applications, but higher levels of heat resistance materials are being introduced periodically
