Product Details:
Payment & Shipping Terms:
|
| Shape: | Strip | Thickness: | 0.3~1.5mm |
|---|---|---|---|
| Coating: | UV Coating | Application: | Advertisement |
| Length: | 3M | Density: | 3.6~3.8 G/cm3 |

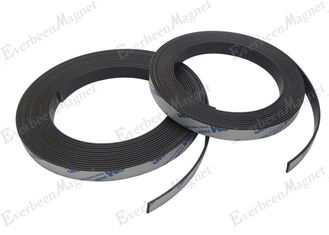

Magnetic Rubber Flexible Magnet Strip With 3M Adhesive For Door Sealing
Flexible magetic strip is compounded by magnetic powder and high polymer materials through the special craft. It has some advantages in magnet shaping, size precision, flexibility etc. It may take the strip, circular, various geometric figured, sheet,coiled material (max. width 620mm, thickness0.4-8mm, unlimited length) according to the customer’s requirements. Its surface may implement UV oil coating, spray lacquer, printing, lamination, double-faced adhesive tape, PVC processing and etc.
The magnetic strip is used in refrigerator, bathroom, window and advertisement, It can be made over ten specification with strip and R, T, I, concave shape. We also can produce them according to the customer’s design and requests.
| Density | 3.6~3.8 g/cm3 |
| SHORE Hardness | 30-60 SHORE D |
| Temperature Coefficient : | -0.2 %/ °C |
| Operation Temperature |
-40~80°C |
| Adhesive | 3M or others |
Magnetic Characteristic :
|
Classification |
Type |
MT(GS) |
Hcb KA/m (Oe) |
Hcj KA/m(Oe)
|
(BH)max KJ/ m3 (MGOe) |
Composition |
Mode of production |
|
Isotropic Rubber Magnet |
YNT-4 |
135-155 (1350-1550) |
85-105 (1050-1300) |
175-210 (2200-2600) |
3.2-5.0 (0.40-0.62) |
BaO.6Fe2O3 SrO.6Fe2O3
|
Extruding
Rolling |
| YNT-S5 |
165-180 (1650-1800) |
90-105 (1130-1300) |
135-160 (1700-2010) |
4.5-5.8 (0.56-0.72) |
|||
| YNT-B5 |
170-190 (1700-1900) |
90-115 (1200-1450 |
150-190 (1885-2400) |
4.6-6.5 (0.57-0.80) |
|||
| YNT-6.5 |
185-200 (1850-2000) |
90-110 (1130-1380) |
125-150 (1570-1885) |
6.0-7.0 (0.74-0.93) |
|||
|
Anisotropic Rubber Magnet |
YNY-10 |
220-240 (2200-2400) |
140-165 (1760-2070) |
200-235 (2500-2950) |
9.0-10.5 (1.1-1.30) |
SrO.6Fe2O3
|
Rolling |
| YNY-11 |
230-250 (2300-2500) |
145-165 (1820-2070) |
190-225 (2380-2850) |
9.5-11.0 (1.18-1.36) |
|||
| YNY-13 |
250-270 (200-2700) |
175-190 (2200-2400) |
200-230 (2500-2900) |
11.5-14.5 (1.42-1.80) |
|||
| YNY-15 |
≥270 (≥2700) |
175-190 (2200-2400) |
200-230 (2500-2900) |
≥14.5 (≥1.8) |
Applications:
They are often used in signs, promotional gifts, advertisements, decoration and door seal application because of their low cost
