High Temp Cobalt Samarium Magnets , Ni - Coated Small Strong Magnets For Fire Place
-
-
Large Image :
High Temp Cobalt Samarium Magnets , Ni - Coated Small Strong Magnets For Fire Place
|
Product Details:
| Place of Origin: |
China |
| Certification: |
ISO9001:2015 |
| Model Number: |
YSSM07 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
2000PCS |
| Price: |
Negotiated |
| Packaging Details: |
Cartons |
| Delivery Time: |
15~20 Days after confirmed order |
| Payment Terms: |
T/T, Western Union,L/C |
| Supply Ability: |
30,000,000pcs per month |
|
Detailed Product Description
| Shape: |
Disc |
Material: |
SM2CO17 |
| Grade: |
YXG26 |
Coating: |
Nickel |
| Working Temp.: |
350 Celsius Degree |
Export Port: |
Xiamen, China |

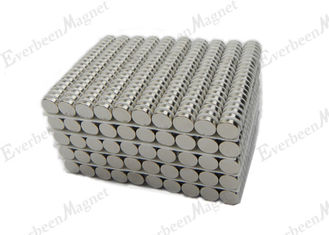

High Temp Samarium Cobalt Magnets Ni-coated DIA 3/8 * 0.1 inch for Fire Place
Samarium cobalt (SmCo) are divided into different components based on SmCo5 and Sm2Co17. SmCo5 series of has a maximum operating temperature of 250C, while Sm2Co17 of 350C. Special grades of Sm2Co17 are available to even higher temperatures.
Attributes of Smco magnet Material
- Expensive material (cobalt is market price sensitive)
- High resistance to demagnetization
- High Energy Product
- Good temperature stability
- High resistance of corrosion and oxidation
Application of Smco Magnet
- Door Closure
- Various Holder
Specifications
| SmCo Other Physical Properties |
Sm2Co17 |
| Temperature Coefficent of remanence(%/°C) |
-0.03 |
| density(g/cm3) |
8.4 |
| Vickers Hardness(HV) |
500-600 |
| Working temperature(°C) |
350 degree
|
Br 11.5 +/- 0.3 kGs
Hcb 9.5 +/- 0.6 kOe
Hci 13 kOe
BH max 32 MGOe
Density 8.4 g/cm3
Max working temp 300 deg.C
