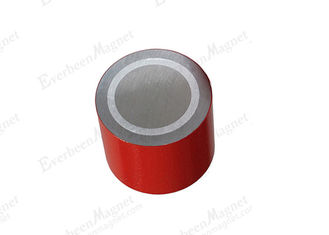

Alinico 5 / Pot Magnetic Assembly Deep Red Dimension 17.5 X 16mm High Residual Induction
Detailed Product Description
Brade: |
Everbeen |
Coating: |
None |
Dimension: |
17.5 X 16mm |
Material: |
Alinico 5 |
Pull Force: |
2.1KGS |
Hole: |
-M6 Hole |
Red Deep Alnico Magnetic Assembly 5 Pot Magnet . up to 220 deg.C. 2.1kg Pull. 17.5 x 16mm
Description :
Alnico magnets, composed of primarily aluminum, nickel, and cobalt, were developed in the 1940's. This class of magnet remains a preferred material because of it's excellent temperature stability, high magnetic flux density, and resistance to corrosion. Alnico magnets are manufactured through a casting or sintering process. The working temperature is up to 250 degrees c. Outer surface except pole can be red (smooth or wrinkle) painted. Coated Nickel, zinc, Chrome to maintain the magnetic strength. Deep pot magnets have a steel outer shell with a tapped hole in the back and a highly magnetic front face. The casting process allows for the magnet to be manufactured into intricate and complex shapes, which are not possible with other magnetic materials.
Attributes of Alnico
• Very temperature stable, great for high heat applications
• Does not lend itself to conventional machining (hard and brittle)
• Working temperature can reach 550-600 °C
• High residual induction and energy product compared to ceramic material
• Low coercive force compared to ceramic and rare earth materials (more subject to demagnetization)
Item name | YS-Alnico-05 |
Working temperature | up to 250 degrees |
Shape | Pot, Round , disc,ring |
Application | work holding devices for welding, wood cutting, sign making and other applications. |
Magnetic property
Grade | Br | HcJ | (BH)max | D | Equivalent< br> MMPA Class | % Change Per C | Tc< /div> | Tw |
mT | Gs | KA/m | Oe | KJ/m3 | MGOe | g/cm3 | Near Br | Near HcJ | ℃ | ℃ |
*LN9 | 680 | 6800 | 30 | 380 | 9 | 1.13 | 6.9 | Alnico 3 | -0.03 | -0.02 | 810 | 450 |
*LN10 | 600 | 6000 | 40 | 500 | 10 | 1.2 | 6.9 | -0.03 | -0.02 | 810 | 450 |
*LNG12 | 720 | 7200 | 45 | 500 | 12.4 | 1.55 | 7 | Alnico 2 | -0.03 | -0.02 | 810 | 450 |
*LNG13 | 700 | 7000 | 48 | 600 | 12.8 | 1.6 | 7 |
LNG37 | 1200 | 12000 | 48 | 600 | 37 | 4.65 | 7.3 | Alnico 5 | -0.02 | 0.03 | 860 | 525 |
LNG40 | 1250 | 12500 | 48 | 600 | 40 | 5 | 7.3 |
LNG44 | 1250 | 12500 | 52 | 650 | 44 | 5.5 | 7.3 |
LNG52 | 1300 | 13000 | 56 | 700 | 52 | 6.5 | 7.3 | Alnico 5DG |
LNG60 | 1350 | 13500 | 59 | 740 | 60 | 7.5 | 7.3 | Alnico 5-7 |
LNGT28 | 1000 | 10000 | 58 | 720 | 28 | 3.5 | 7.3 | Alnico 6 | -0.02 | 0.03 | 860 | 525 |
LNGT3 | 700 | 7000 | 140 | 1750 | 36 | 4.5 | 7.3 | Alnico 8HC | -0.025 | 0.02 | 860 | 550 |
*LNGT18 | 580 | 5800 | 100 | 1250 | 18 | 2.2 | 7.3 | Alnico 8 | -0.025 | 0.02 | 860 | 550 |
LNGT32 | 800 | 8000 | 100 | 1250 | 32 | 4 | 7.3 | Alnico 8 | -0.025 | 0.02 | 860 | 550 |
LNGT40 | 800 | 8000 | 110 | 1380 | 40 | 5 | 7.3 |
LNGT60 | 900 | 9000 | 110 | 1380 | 60 | 7.5 | 7.3 | Alnico 9 | -0.025 | 0.02 | 860 | 550 |
