Product Details:
Payment & Shipping Terms:
|
Material: | Fe2O3 And BaO Or SrO | Specificatiom: | 2*1*01/4 Inch |
---|---|---|---|
Shape: | Block Or Others | Properties: | Y25, Y28H, Y30H-1,Y30H-2and Y33 (China Standard) |
Grade: | Y30 C5 |
Hard Ferrite Magnets Y30 C8 ID100*ID60*H20MM , Permanent magnet
Description :

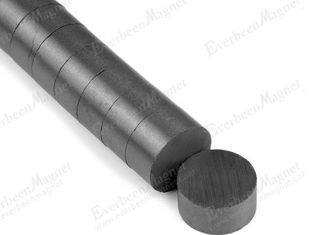

Ferrite magnets are composed of SrO or BaO and Fe2O3. Their color are charcoal gray and usually appear in the forms of discs, rings, blocks, cylinders, and sometimes arcs or segments for motors.
Special Features:
Item number | YSFM-RING-02 |
Material | SrO or BaO and Fe2O3 |
Minimum diatemer | 3mm, with dot or no mark |
Tolerance |
Thickness ± .005inch Others: ± 2% or ± .010inch |
Shape available | Block , ring , disc |
Application |
Speaker , DC Motors ,Magnetic Door Catcher , Separators (separate ferrous material from non-ferrous) |
Material | Br | Hcb | Hcj | (BH)max | ||||
mT | KG | KA/m | KOe | KA/m | KOe | KJ/m3 | MGOe | |
C1 | 230 | 2.3 | 148 | 1.86 | 258 | 3.5 | 8.36 | 1.05 |
C5 | 380 | 3.8 | 191 | 2.4 | 199 | 2.5 | 27 | 3.4 |
C7 | 340 | 3.4 | 258 | 3.23 | 318 | 4.00 | 21.9 | 2.75 |
C8(C8A) | 385 | 3.85 | 235 | 2.95 | 242 | 3.05 | 27.8 | 3.5 |
C9 | 380 | 3.8 | 280 | 3.516 | 320 | 4.01 | 26.4 | 3.32 |
C10 | 400 | 4.0 | 288 | 3.617 | 280 | 3.51 | 30.4 | 3.82 |
C11 | 430 | 4.3 | 200 | 2.512 | 204 | 2.56 | 34.4 | 4.32 |
