Product Details:
Payment & Shipping Terms:
|
| Material: | NdFeB | Grade: | N52 |
|---|---|---|---|
| Diameter: | 15/16 Inch | Plated: | NiCuNi |
| Shape: | Disc, Round | Export Port: | Xiamen Port |

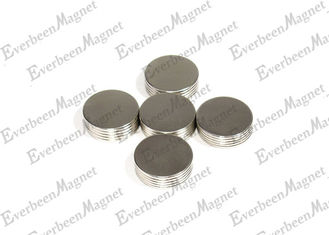

Dia 15/16 * 1/16 Inch Round Neodymium Magnets N52 Nickel Coating For Daily Life
Neodymium magnet (Nd-Fe-B) is one of the highest property and strongest permanent magnet by now, are made through powder metallurgy manufacturing techniques. They are mainly composed of neodymium(32%), iron(64%), boron(1%), and a few quantity rare earth material, such as Dy, Tb, Co, Nb, Ga, Al, Cu,etc.
Advantage: 1.Neodymium magnet is regarded as “Magnet King” due to its recorded high remanence, coercive force and maximum energy product. With Neodymium magnet rapid development, many high-tech products were developed. Especially its application in motors makes products miniaturization and micromation.
2. Due to its high remanence, coercive force and maximum energy product, this type magnet is widely used in servo motor, flat brushless motor, step motor, IT products, Nuclear Magnetic Resonance, speaker and other products.
3. Neodymium magnet is easily rust and oxidated, so their surface must be plated Zn, Ni, Silver, Gold or made phosphor and epoxy treatment.
4.The mainly higher product Grade is N45, N48, N50, N52, 48M, 50M, 44H, 46H, 48H, 42SH, 44SH, 38UH, 40UH, 33EH, 35EH.
Magnetic Property
| Grade | Br mt(KG) | Hcb Koe(KA/m) | iHc Koe(KA/m) | (BH)max KJ/m3 (MGOe) | TW℃ |
| N35 | 1170-1210(11.7-12.1) | ≧10.8(≧860) | ≧12(≧955) | 263-287(33-36) | 80 |
| N38 | 1210-1250(12.1-12.5) | ≧10.8(≧860) | ≧12(≧955) | 287-310(36-39) | 80 |
| N40 | 1250-1280(12.5-12.8) | ≧11.6(≧923) | ≧12(≧955) | 302-326(38-41) | 80 |
| N42 | 1280-1320(12.8-13.2) | ≧11.6(≧923) | ≧12(≧955) | 318-342(40-43) | 80 |
| N45 | 1320-1380(13.2-13.8) | ≧11.0(≧876) | ≧12(≧955) | 342-366(43-46) | 80 |
| N48 | 1380-1420(13.8-14.2) | ≧10.5(≧835) | ≧12(≧955) | 366-390(46-49) | 80 |
| N50 | 1380-1450(13.8-14.5) | ≧10.5(≧835) | ≧12(≧955) | 474-406(47-51) | 80 |
Applications of Round permanent neodymium Magnets
★ Notice about the magnet’s stock and transportation:
