Product Details:
Payment & Shipping Terms:
|
| Shape: | Circle With Central Hole | Material: | Neodymium, Iron, Boron |
|---|---|---|---|
| Finished: | Ni | (BH) Max: | 38~41 MGOe |
| Working Temp.: | 80 Celsius Degree | Magnetized: | Axially |

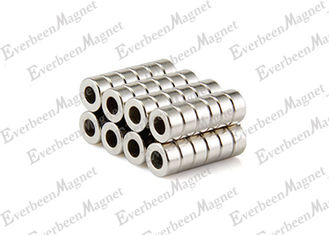

N40 Big Circle Neodymium Magnet With Central Hole OD 3/4 inch Axially Magnetized
Neodymium magnet (Nd-Fe-B) is one of the highest property and strongest permanent magnet by now, are made through powder metallurgy manufacturing techniques.
Magnetic Characteristic of Sintered Neodymium Magnet
| Grade | Br mt(KG) | Hcb Koe(KA/m) | iHc Koe(KA/m) | (BH)max KJ/m3 (MGOe) | TW℃ |
| N38 | 1210-1250(12.1-12.5) | ≧10.8(≧860) | ≧12(≧955) | 287-310(36-39) | 80 |
| N40 | 1250-1280(12.5-12.8) | ≧11.6(≧923) | ≧12(≧955) | 302-326(38-41) | 80 |
| N42 | 1280-1320(12.8-13.2) | ≧11.6(≧923) | ≧12(≧955) | 318-342(40-43) | 80 |
| N45 | 1320-1380(13.2-13.8) | ≧11.0(≧876) | ≧12(≧955) | 342-366(43-46) | 80 |
| N48 | 1380-1420(13.8-14.2) | ≧10.5(≧835) | ≧12(≧955) | 366-390(46-49) | 80 |
| N50 | 1380-1450(13.8-14.5) | ≧10.5(≧835) | ≧12(≧955) | 474-406(47-51) | 80 |
★ What’s the application of NdFeB magnet?
The NdFeB permanent magnet is a kind of energy material, which can produce the stable magnetic field in the certain space. Because of its highest coercive force and , especially under the 20℃～150℃, it works better than any other kinds of permanent magnets. So it is widely used in many areas, especially in the high-tech area. Basing on its physical principle, the usual applications are as below:
Electric energy to mechanical energy: as electromotor,speaker,VCM (Voice Coil Motor);
Mechanical energy to electric energy: like the generators, telephone receiver, and measuring instrument;
Mechanical energy to Mechanical energy: as the magnetic separator, magnetic suspension, magnetic actuators and magnet chucks;
Magnetic field’s physical effect: like the Nuclear magnetic resonance, magnetic cleaning device and magnetic oil-saving mechanism.
