| Material: | NdFeB | Grade: | 42H |
|---|---|---|---|
| Dimension: | Dia 1 1/4 Inch Or Customized | Thickness: | 5mm |
| Colour: | Silver | Shipment: | Sea Shipment |

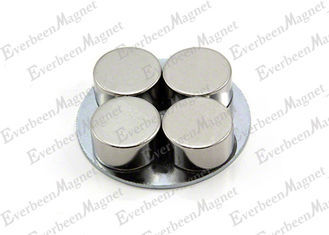

High Magnetic Power Cylinder Permanent Magnets Diameter 1 1/4 inch Generator Magnets
Description of Cylinder Generator Magnets
2. Strong magnets are developed rapidly and applied widely due to their
perfect characteristic, rich raw material resource and reasonable price.
Magnetic Characteristic of Generators Magnets
| Grade | Br mt(KG) | Hcb Koe(KA/m) | iHc Koe(KA/m) | (BH)max KJ/m3 (MGOe) | TW℃ |
| 35H | 1170-1210(11.7-12.1) | ≧11.0(≧876) | ≧17(≧1353) | 263-287(33-36) | 120 |
| 38H | 1210-1250(12.1-12.5) | ≧11.2(≧890) | ≧17(≧1353) | 287-310(36-39) | 120 |
| 40H | 1250-1280(12.5-12.8) | ≧11.5(≧915) | ≧17(≧1353) | 302-326(38-41) | 120 |
| 42H | 1280-1320(12.8-13.2) | ≧12.0(≧955) | ≧17(≧1353) | 318-342(40-43) | 120 |
| 45H | 1320-1380(13.2-13.5) | ≧12.0(≧955) | ≧17(≧1353) | 335-366(42-46) | 120 |
