Product Details:
Payment & Shipping Terms:
|
| Grade: | 35H-45H | Working Temp.: | 120 Celsius Degree |
|---|---|---|---|
| Size: | Dia 25.4mm Or Customized | Plating: | NiCuNi, Zinc |
| Magnetization: | Axially Or Diametrically | Shipment: | By Sea Or By Air |

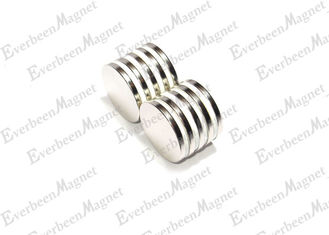

Diameter 1 inch Super Strong Round Neodymium Magnets for Electronic Products
Application:
Description:
Strong Round Manget are composed of neodymium, iron, boron and a few transition metals.
2. Strong magnets are developed rapidly and applied widely due to their
perfect characteristic, rich raw material resource and reasonable price.
Magnetic Characteristic of Sintered Neodymium Magnets
| Grade | Br mt(KG) | Hcb Koe(KA/m) | iHc Koe(KA/m) | (BH)max KJ/m3 (MGOe) | TW℃ |
| 35H | 1170-1210(11.7-12.1) | ≧11.0(≧876) | ≧17(≧1353) | 263-287(33-36) | 120 |
| 38H | 1210-1250(12.1-12.5) | ≧11.2(≧890) | ≧17(≧1353) | 287-310(36-39) | 120 |
| 40H | 1250-1280(12.5-12.8) | ≧11.5(≧915) | ≧17(≧1353) | 302-326(38-41) | 120 |
| 42H | 1280-1320(12.8-13.2) | ≧12.0(≧955) | ≧17(≧1353) | 318-342(40-43) | 120 |
| 45H | 1320-1380(13.2-13.5) | ≧12.0(≧955) | ≧17(≧1353) | 335-366(42-46) | 120 |
